CSIR coastal and hydraulics laboratory

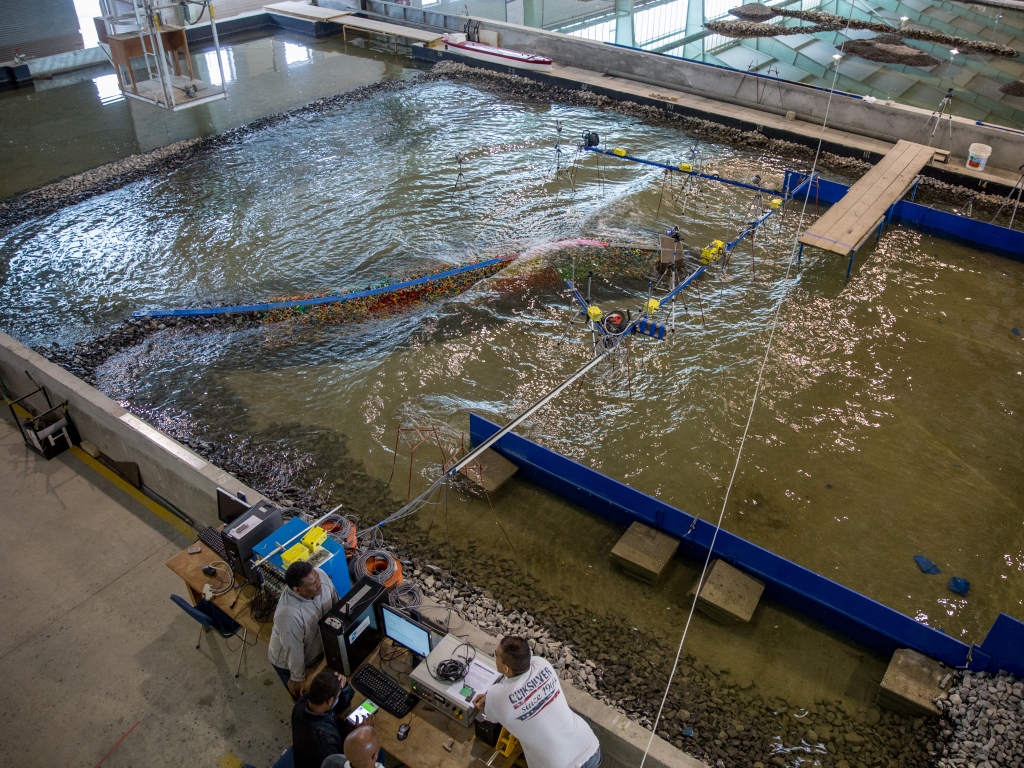

The coastal and hydraulics laboratory is an 11 000m2 facility that houses infrastructure for both 2D and 3D physical model studies. There are three large wave basins (32 m x 54 m x 1.5 m, 32 m x 60 m x 1 m, 32 m x 40 m x 1.5 m) for 3D modelling, with removable walls to create a larger wave basin (up to 115 m long) if needed. Waves are generated by six 4 m multi-element rack and pinion wave generators from HR Wallingford, which are controlled using HR Wallingford software. Steel and wooden boundary walls act as guides to control wave direction, and the system is equipped with a dynamic wave absorption feature.

The system can produce regular or irregular wave patterns and various wave forms, including long and short crested waves. It can also produce random wave forms defined by user inputs, and waves can be created in any direction within a 30° arc.

3D modelling usually focuses on scales from 1:40 to 1:60, but the facility can produce accurate models up to 1:120 for especially large projects.

The facility also includes two wave flumes (4 m x 32 m x1 m, 12 m x 32 m x1 m) for quasi-3D modelling and two wave flumes (both 1 m x 32 m x 1 m, one glass and one concrete) for 2D modelling. The wave flumes use a single paddle wave maker (0.75 m paddle), also from HR Wallingford and also capable of producing both regular and irregular wave shapes.

2D modelling is mostly used to study a design in cross section, and ranges in scale from 1:20 to 1:40.

The laboratory can measure wave amplitudes, direction and force as well as propagation and agitation; vessel motions and response; mooring forces; wave run-up and overtopping; slope and breakwater stability; and force and pressure measurements.

Wave measurements

Wave measurements are conducted using either capacitance wave gauges (up to 0.5 mm accuracy), or the CSIR’s proprietary keofloat system (up to 0.2 mm accuracy). The keofloat system is most accurate for waves smaller than 5 mm and is useful for up to 20 mm waves. Above that, the capacitance wave gauges are most accurate.

Capacitance wave gauges rely on capacitance resistance data to measure wave height and direction, while the keofloat system uses videography to measure vertical movement of floating probes with sub-pixel accuracy. To measure wave direction, groups of keofloat probes are employed.

Vessel motions

The laboratory constructs its own model vessels to scale, which are proportional in both size and load weight to full-size ships, and have the same centre of gravity and moment of inertia around both its horizontal axes. This ensures that the models behave in the same way as their full-size counterparts when being tested. Model vessels are calibrated to ensure both the roll and pitch periods are correct before being used in tests.

Once the model ships are built, their movements can be measured using the CSIR-developed keoship system. Similar to the keofloat system, this uses videography and a processing algorithm to record ship motions at sub-pixel accuracy and convert that data into information on all six types of ship movement (heave, surge, sway, pitch, roll and yaw). The first three degrees of freedom refer to directional movement of the ship and have an accuracy of 0.1 mm, while the last three degrees of freedom refer to rotational movement around all three ship axes, and have an accuracy of 0.04° (roll) and 0.01° (pitch and yaw).

Mooring forces

Measuring strain on mooring lines is vitally important when modelling a port or harbour. To achieve this, the laboratory uses strain gauges attached to mooring lines, which provide an output in Newtons of force with an accuracy up to 5 mN. The mooring lines themselves are calibrated to provide the correct amount of resistance and elasticity. The keoship system can also be used for this measurement, which is more convenient than using strain gauges but slightly less accurate (10-30 mN).

Pressure and force measurements

Pressure on walkways and caissons (watertight retaining structures for underwater construction) can also be measured using pressure gauges or force transducers.

Overtopping

Wave overtopping occurs when water splashes over a breakwater and can cause damage through flooding or endanger human life. The laboratory measures overtopping for coastal structures in litres per second per metre-width of the structure.

Slope and breakwater stability

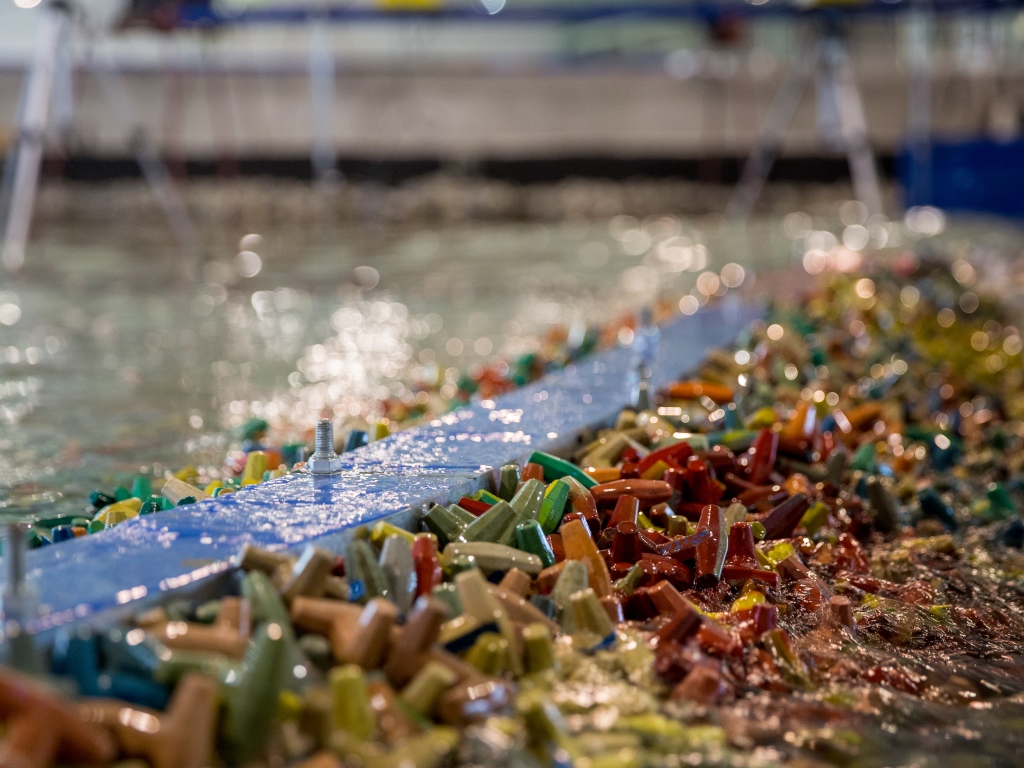

Slope stability is measured using photography as well as laser scanning, and is measured by identifying displaced armour units (concrete units used specifically for breakwaters; examples include dolosse, Xblocs and KOLOS units). Scale units are manufactured using identical materials to ensure the properties are the same. In addition, underlying rock for the model is sourced from a quarry producing similar rock as the rock used in the actual construction and graded at the laboratory, again to ensure that the properties are the same. For laser scanning, the Riegl VZ400 3D laser mapping scanner is used with accompanying software.

Services

Using the abovementioned capabilities, the laboratory can provide the following capabilities to clients:

  • 3D wave agitation studies;
  • 3D breakwater stability and wave overtopping studies;
  • 3D moored ship response studies which includes passing ship studies;
  • 3D vessel grounding studies;
  • Quasi-3D breakwater stability and wave overtopping studies;
  • 2D breakwater stability and wave overtopping studies;
  • 2D wave transmission studies; and
  • Force and pressure measurement studies on caissons, floating walkways and various forms of slope protection.


Track record

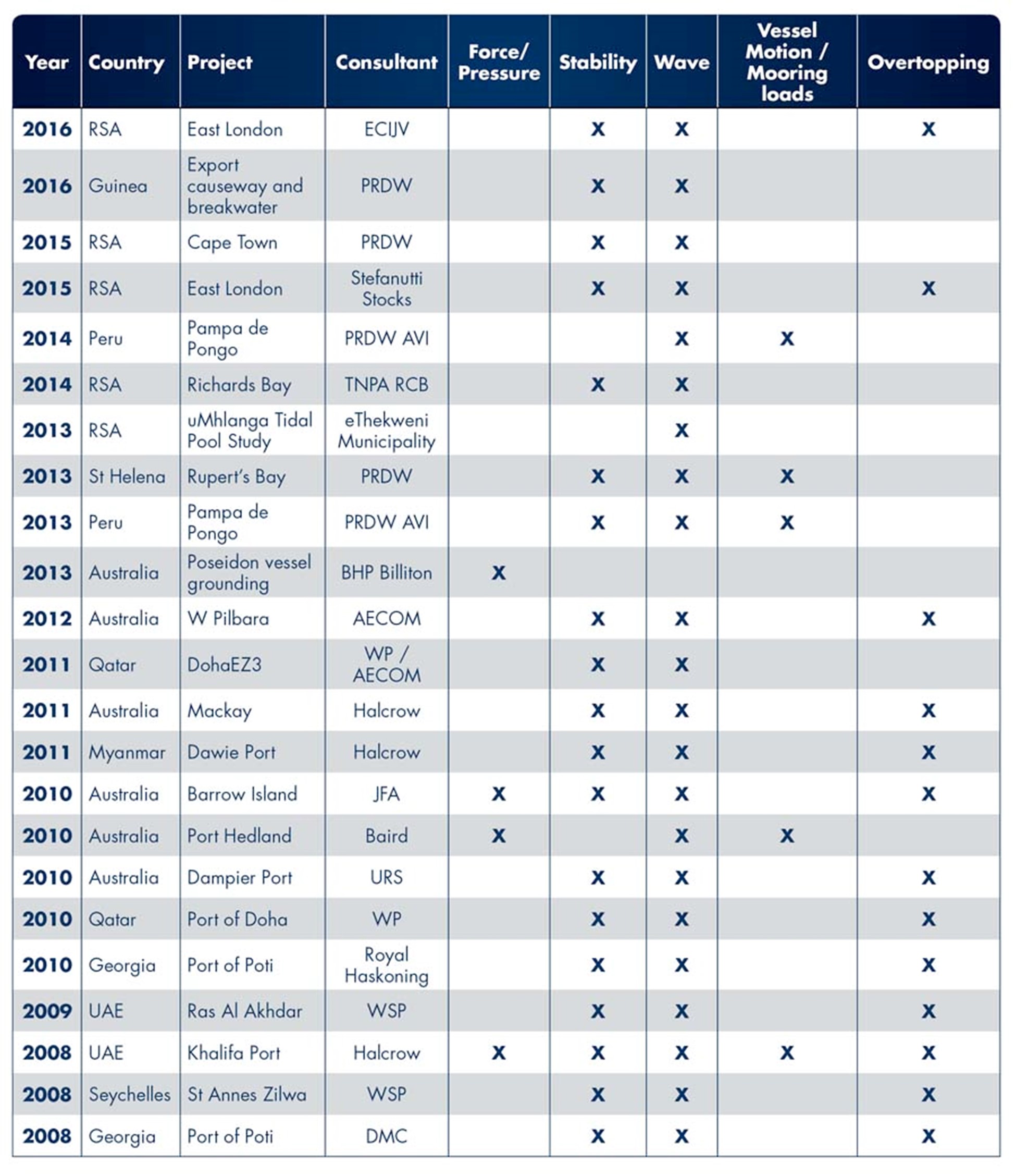

The coastal and hydraulics laboratory has more than 35 years’ experience in physical modelling for a range of local and international clients. Below is a selection of recent projects that highlights the laboratory’s expertise.

Contact Person

Johan Kieviet

Key Concept

Physical modelling
In this context, a physical model is a small-scale representation of a large, complex system such as a port or harbour. It is built as accurately as possible to ensure that the measurements and findings can be applied to the full-size version.
